Description
THOR Pure Sine Wave inverters have set the standard with the way you deal with your mobile power needs, providing AC electricity. A 2000 watt power inverter converts the DC electricity from batteries into everyday AC power. With a 2000 watt THOR pure sine wave inverter you won’t need to rely on DC-powered electronics or a generator to have power for tools, electronics, or any AC power needs.
THOR 2000 Watt Pure Sine Wave inverters are efficient and dependable. Thor power inverters come in numerous sizes and power ranges to meet your mobile power demands. We offer compact, higher powered models that yield enough power for larger vehicles such as utility & work trucks, RV’s, boats, & renewable energy applications.
Model: THPW2000
Input Specs
DC input voltage rating: 12V DC
DC input voltage range: 11 to 16V DC
No load current draw: < 0.8 amps
Low battery voltage alarm : 10.5V DC
Low battery voltage shutdown : 9.5 V DC +/- 0.5
Low battery voltage recovery : 12 V DC
High battery voltage shutdown : 16.5V DC +/- 0.5
High battery voltage recovery : 14V DC
Fuse (internal): 25A×12(MAX)
Input reverse protection Yes
Output Specs
Output voltage range: 120V AC (RMS) or 110V AC (RMS):
Output frequency: 60Hz
Output wave form: Pure Sine Wave
Max output power: 2200W
Continuous output power: 2000W
Overload protection power: 2000W
Surge capacity (Peak power): 4000W
Pure Sine Wave Output: THD<3%
USB output: DC 4.75V-5.25V @ 0-2.1A
Features
Display: Input voltage , Output Power, Fault Code Indicator
Efficiency (except power loss on the wire): >85%
Over load protection: Yes
Short circuit protection: Yes
Over temperature shutdown: ~65℃
Operating temperature range: -5-40℃
Storage temperature range: -20-50℃
Operating relative humidity: 10% – 90%
Storage relative humidity: 5% – 95%
Connector: DC cable
Cooling: By fan

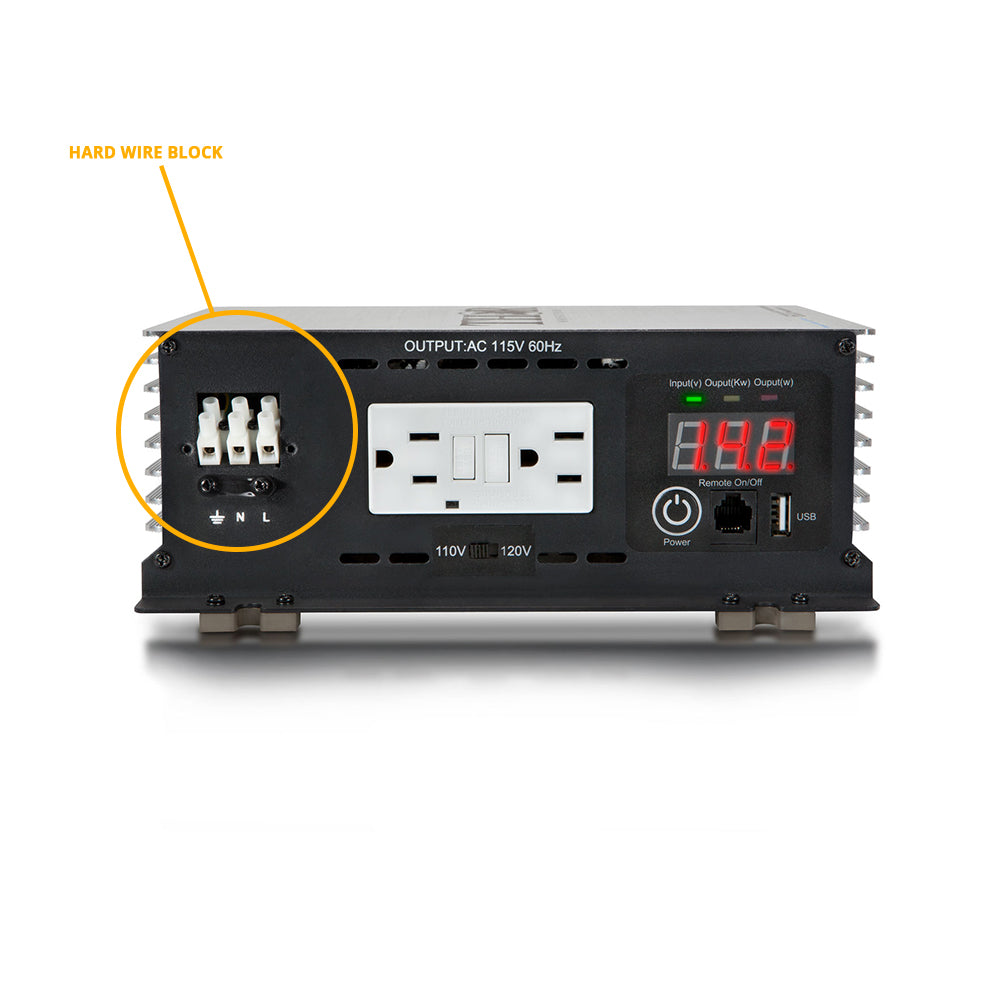

AC Sockets: GFCI outlet / 1 Hard wire Block
Product Info:
Bar Code Number: 853003006506
Packaging: Box

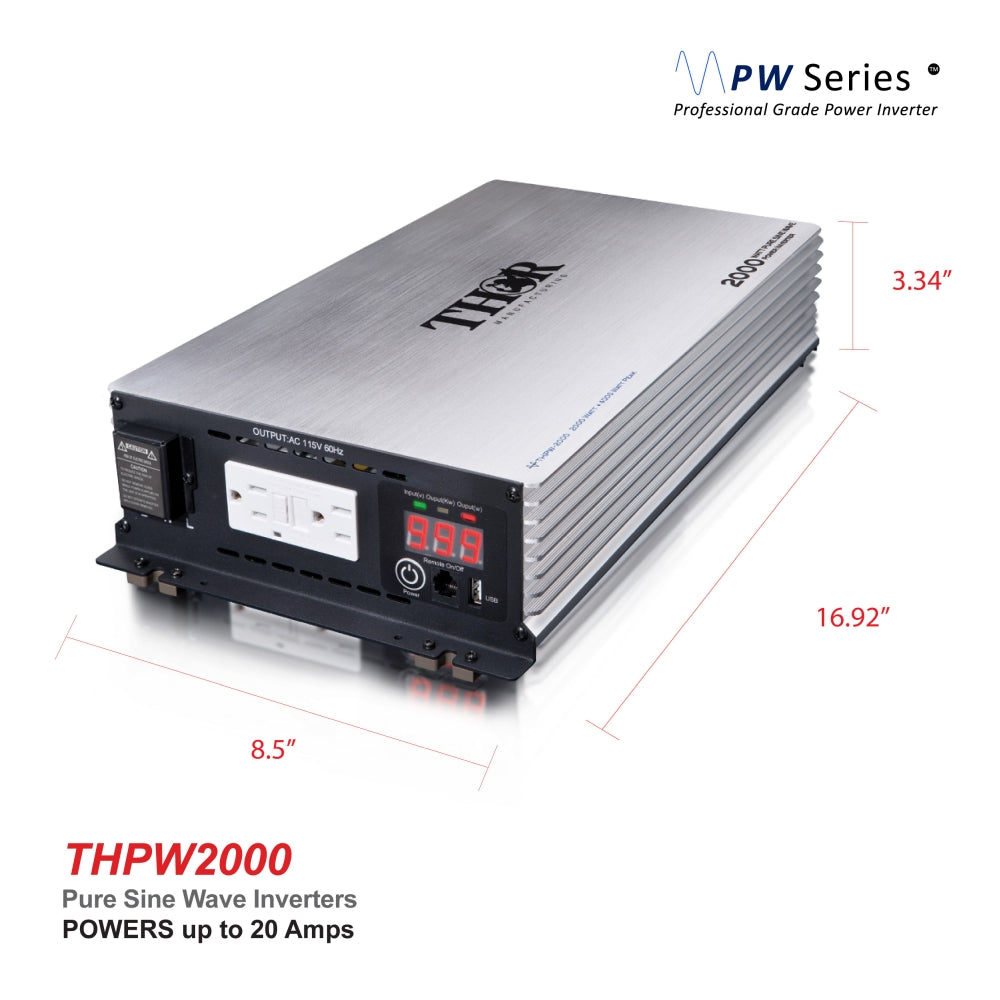

Dimension: 16.92L x 8.5W x 3.34″H
Net weight: 14.75 lbs
See how this compares to the 1,500-watt inverters we carry
See how this compares to our other 2,000-watt inverters
