Description

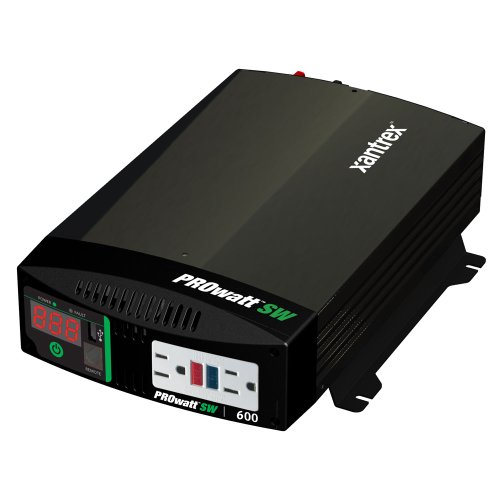

The Xantrex 806-1206 PROwatt SW feature True Sine-Wave AC output with 600 watts. With high surge capability, the PROwatt SW Series provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter’s output when the vehicle’s ignition is not engaged.
The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.
PROWatt SW 600 Specifications
Electrical Specifications
Model
PROWatt SW 600
Maximum AC Power
600 W Maximum – 540 W Continuous
Surge capacity (peak)
1200 W
DC input
12 Vdc (nominal)
AC output frequency
60 ± 0.05 Hz
AC output voltage range
104 – 127 Vac
USB output
5 V / 500 mA
Output waveform
True Sine Wave
Optimum efficiency
90%
No load current draw
< 0.6 A
Input voltage range
10.5 – 15.5 Vdc
General Specifications
Output temperature range
32°F to 104°F (0°C to 40°C)
AC receptacle
Dual GFCI
USB receptacle
Single port (Type A)
DC connection
Hardwire
Recommended DC fuse
150 A
Digital display
DC voltage, AC output power & error codes
Dimensions (H x W x L)
3.5 x 8.7 x 12.2” (89 x 220 x 310 mm)
Weight
6.5 lb (3.0 kg)
Warranty
Two year
Part number
806-1206
