Thor THPW300-PPI 300 Watt Pure Sine Wave Inverter

  • $75.00
Shipping calculated at checkout.


THOR Pure Sine Wave inverters have set the standard with the way you deal with your mobile power needs, providing AC electricity. A 300 watt power inverter converts the DC electricity from batteries into everyday AC power. With a 300 watt Pure Sine Wave THOR inverter you won’t need to rely on DC-powered electronics or a generator to have power for tools, electronics, or any AC power needs.

THOR Pure Sine Wave inverters are efficient and dependable and come in numerous sizes and power ranges to meet your mobile power demands. We offer compact, higher powered models that yield enough power for larger vehicles such as utility & work trucks, RV’s, boats, & renewable energy applications.

Model: THPW300-PPI

Input Specs

  • DC input voltage rating: 12V DC
  • DC input voltage range: 10.7 to 16.5V DC
  • No load current draw:  < 0.8 amps
  • Low battery voltage alarm : 10.5V DC
  • Low battery voltage shutdown : 9.5 V DC
  • Low battery voltage recovery : 12 V DC
  • High battery voltage shutdown : 16.5V DC
  • High battery voltage recovery : 14V DC
  • Fuse (internal): Yes
  • Input reverse protection: Yes

Output Specs

  • Output voltage range: 120V AC (RMS)
  • Output frequency: 60Hz
  • Output wave form: Pure Sine Wave
  • Continuous output power: 300W
  • Surge capacity (Peak power): 600W
  • Pure Sine Wave Output: THD<3%
  • 2 x USB output: DC 4.75V-5.25V @ 0-2.1A


  • BI-COLOR LED: (Green / Inverter On) (Red / Inverter in Fault)
  • Efficiency (except power loss on the wire): >85%
  • Over load protection: Yes
  • Short circuit protection: Yes
  • Over temperature shutdown: ~65℃
  • Operating temperature range: -5-40℃
  • Storage temperature range: -20-50℃

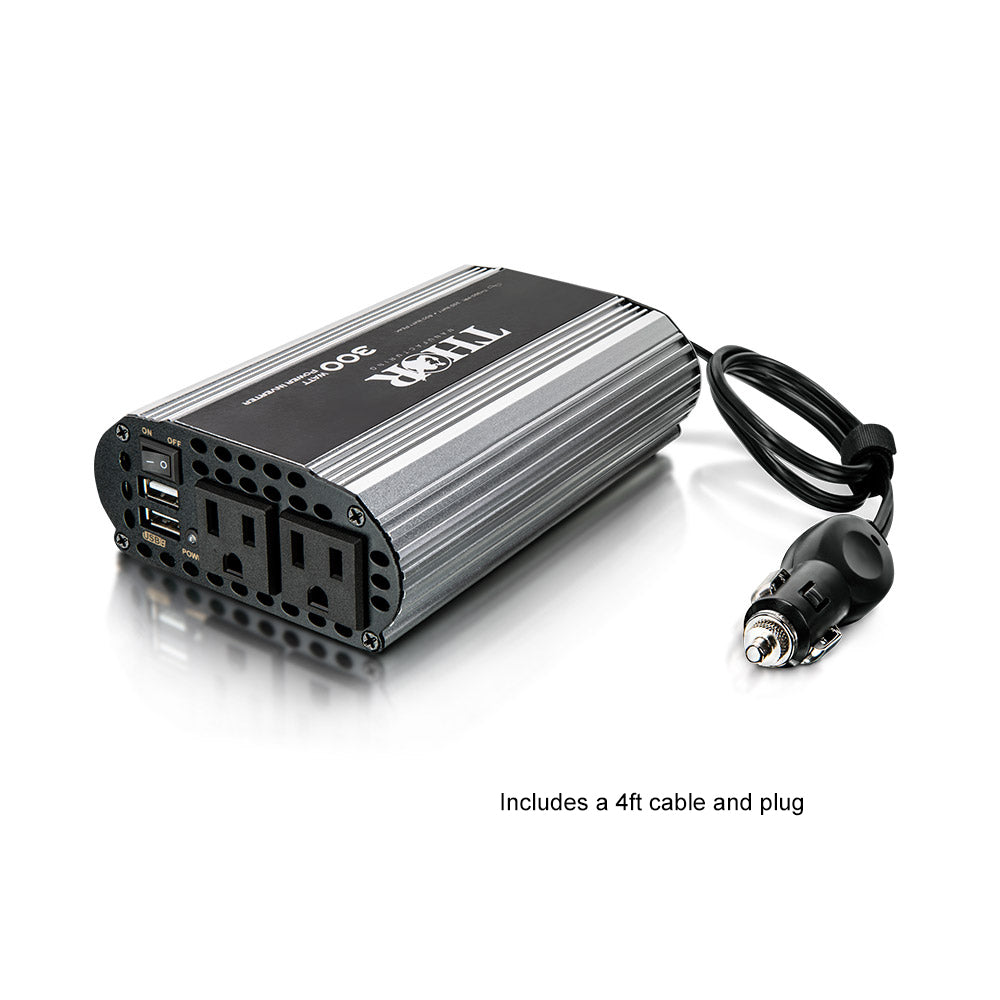

  • Connector: 4 ft DC cable
  • Cooling: By fan
  • AC Sockets: Dual outlet

Product Info:

  • Bar Code Number: 0852090008530
  • Packaging: Box

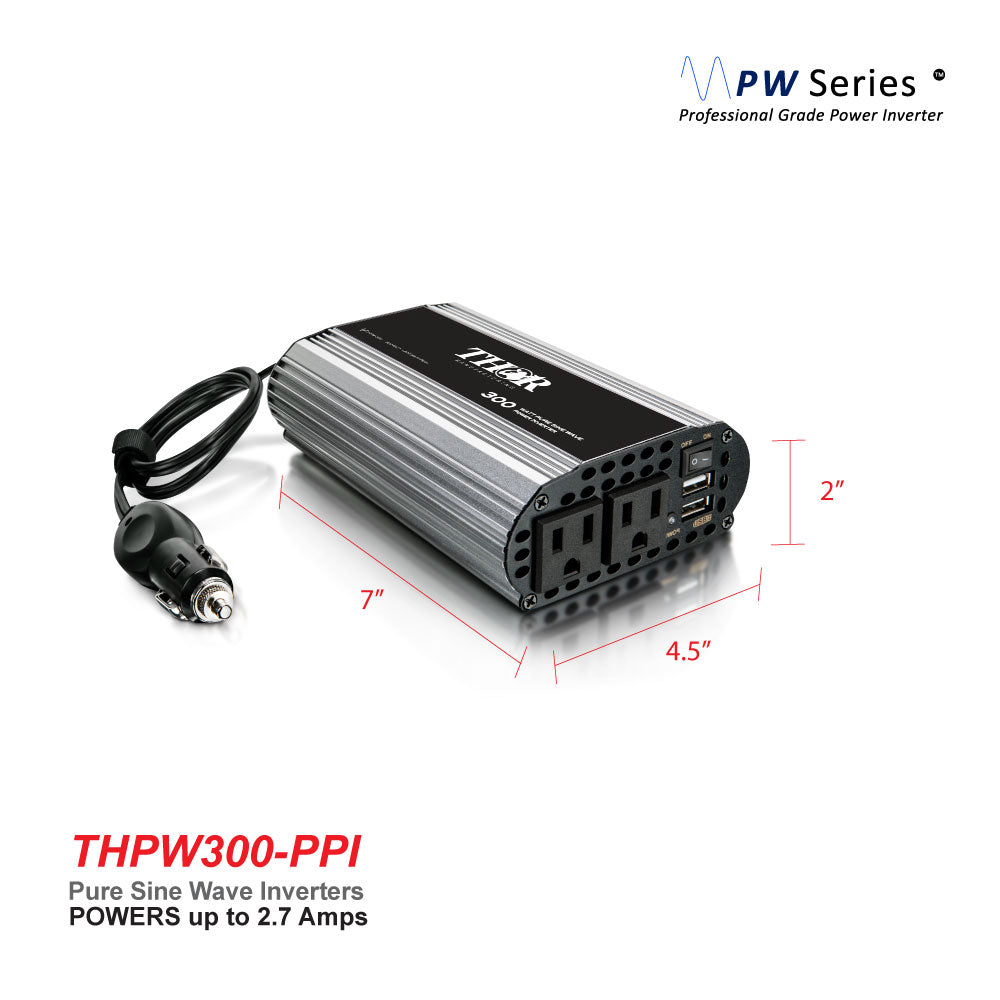

  • Dimension: 7L x 4.5W x 2″H
  • Net weight: 1.76lbs

THPW300 User Manual


Compliance and Restrictions

WARNING: Cancer and Birth Defect/Reproductive Harm --
