Thor THPW1000 1000 Watt Pure Sine Wave Inverter

Description

THOR Pure Sine Wave inverters have set the standard with the way you deal with your mobile power needs, providing AC electricity. A 1000 watt power inverter converts the DC electricity from batteries into everyday AC power. With a 1000 watt THOR pure sine wave inverter you won’t need to rely on DC-powered electronics or a generator to have power for tools, electronics, or any AC power needs.

THOR 1000 Watt Pure Sine Wave inverters are efficient and dependable.  Thor power inverters come in numerous sizes and power ranges to meet your mobile power demands. We offer compact, higher powered models that yield enough power for larger vehicles such as utility & work trucks, RV’s, boats, & renewable energy applications.

Model: THPW1000

Input Specs

• DC input voltage rating: 12V DC
• DC input voltage range: 10.5 to 16.5V DC
• No load current draw:  < 0.8 amps
• Low battery voltage alarm : 10.5V DC
• Low battery voltage shutdown : 9.5 V DC
• Low battery voltage recovery : 12 V DC
• High battery voltage shutdown : 16.5V DC
• High battery voltage recovery : 14V DC
• Fuse (internal): 30A×4(MAX)
• Input reverse protection Yes

Output Specs

• Output voltage range: (Selectable)  120V AC (RMS) or 110V AC (RMS):
• Output frequency: 60Hz
• Output wave form: Pure Sine Wave
• Max output power: 1100W
• Continue output power: 1000W
• Overload protection power: 1100W
• Surge capacity (Peak power): 2000W
• Pure Sine Wave Output: THD<3%
• USB output: DC 4.75V-5.25V @ 0-2.1A

Features

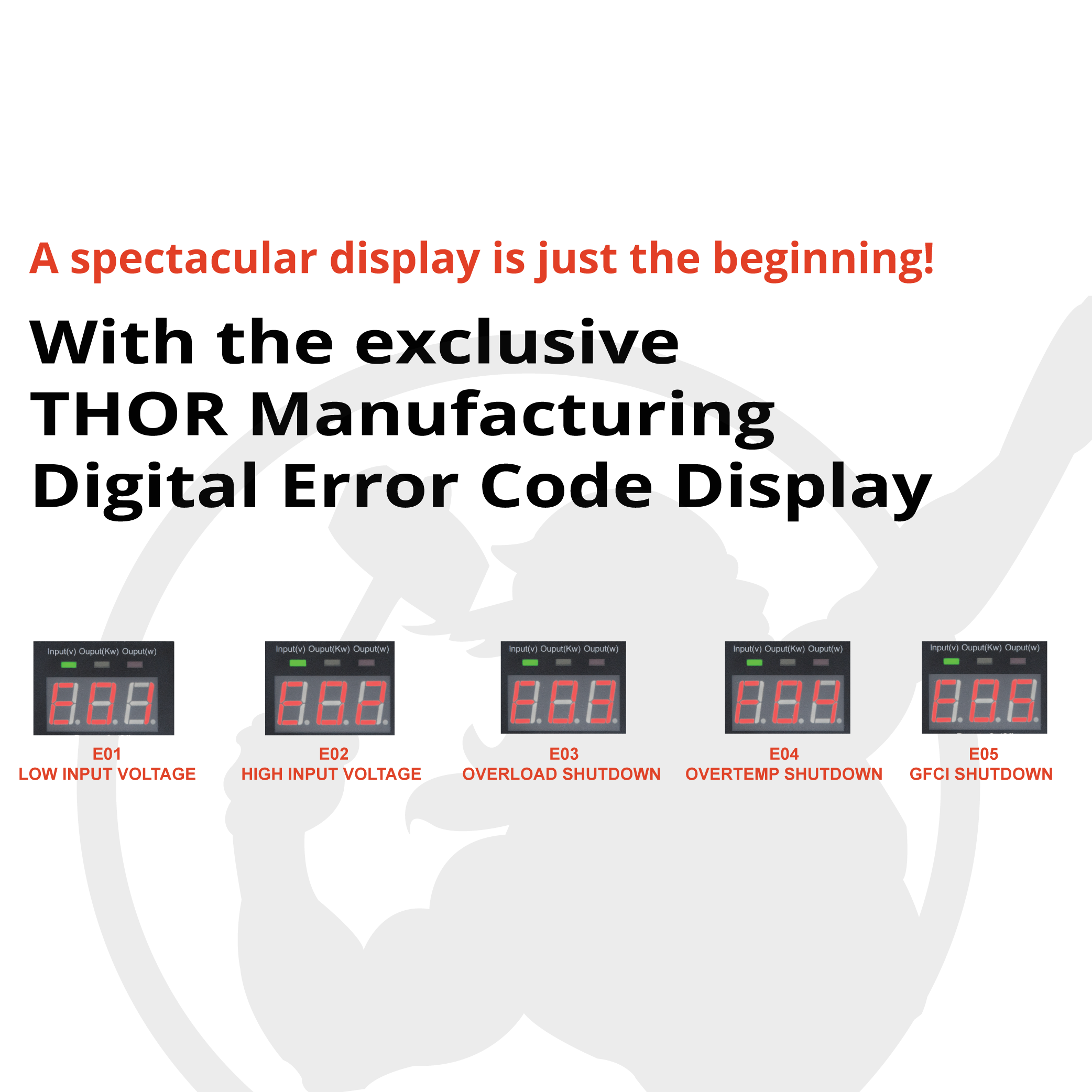

• Display: Input voltage , Output Power, Fault Code Indicator
• Efficiency (except power loss on the wire): >85%
• Over load protection: Yes
• Short circuit protection: Yes
• Over temperature shutdown: ~65℃
• Operating temperature range: -5-40℃
• Storage temperature range: -20-50℃
• Connector: DC cable
• Cooling: By fan

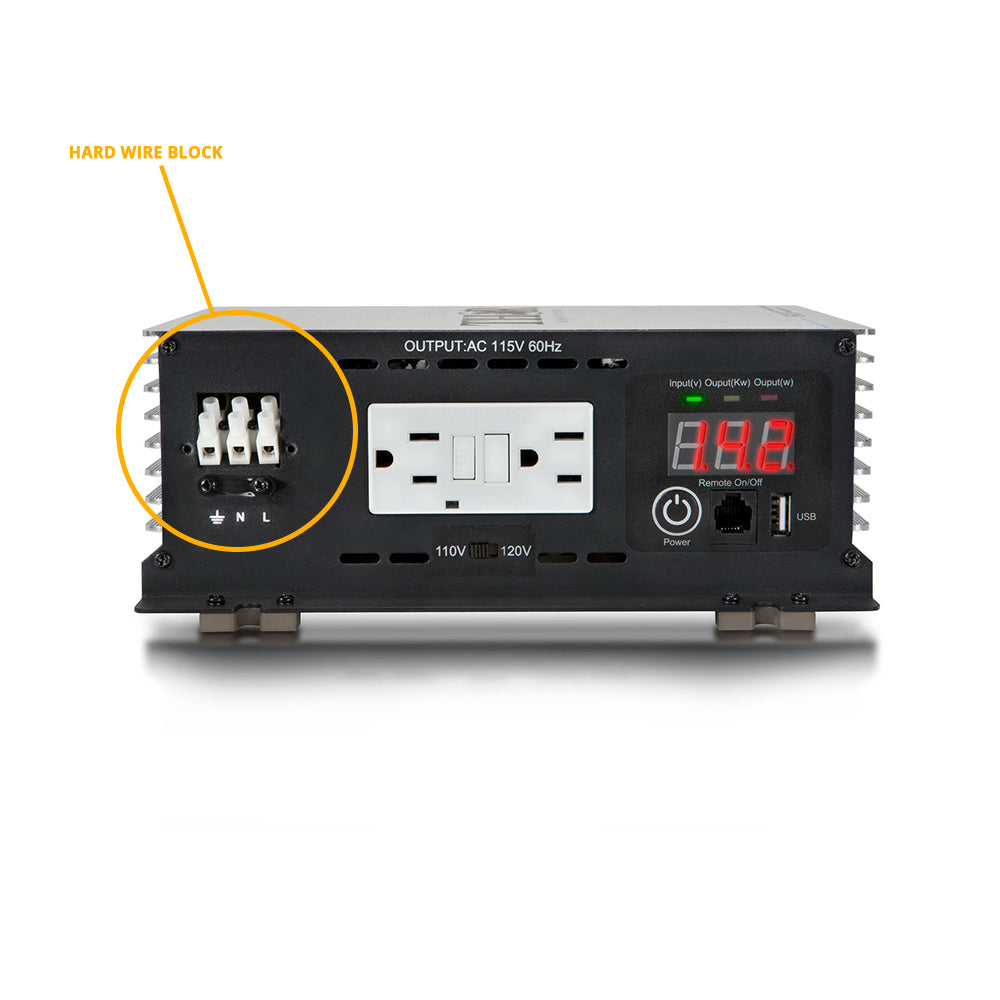

• AC Sockets: GFCI outlet / Hard wire Block

Product Info:

• Bar Code Number: 853003006490
• Packaging: Box

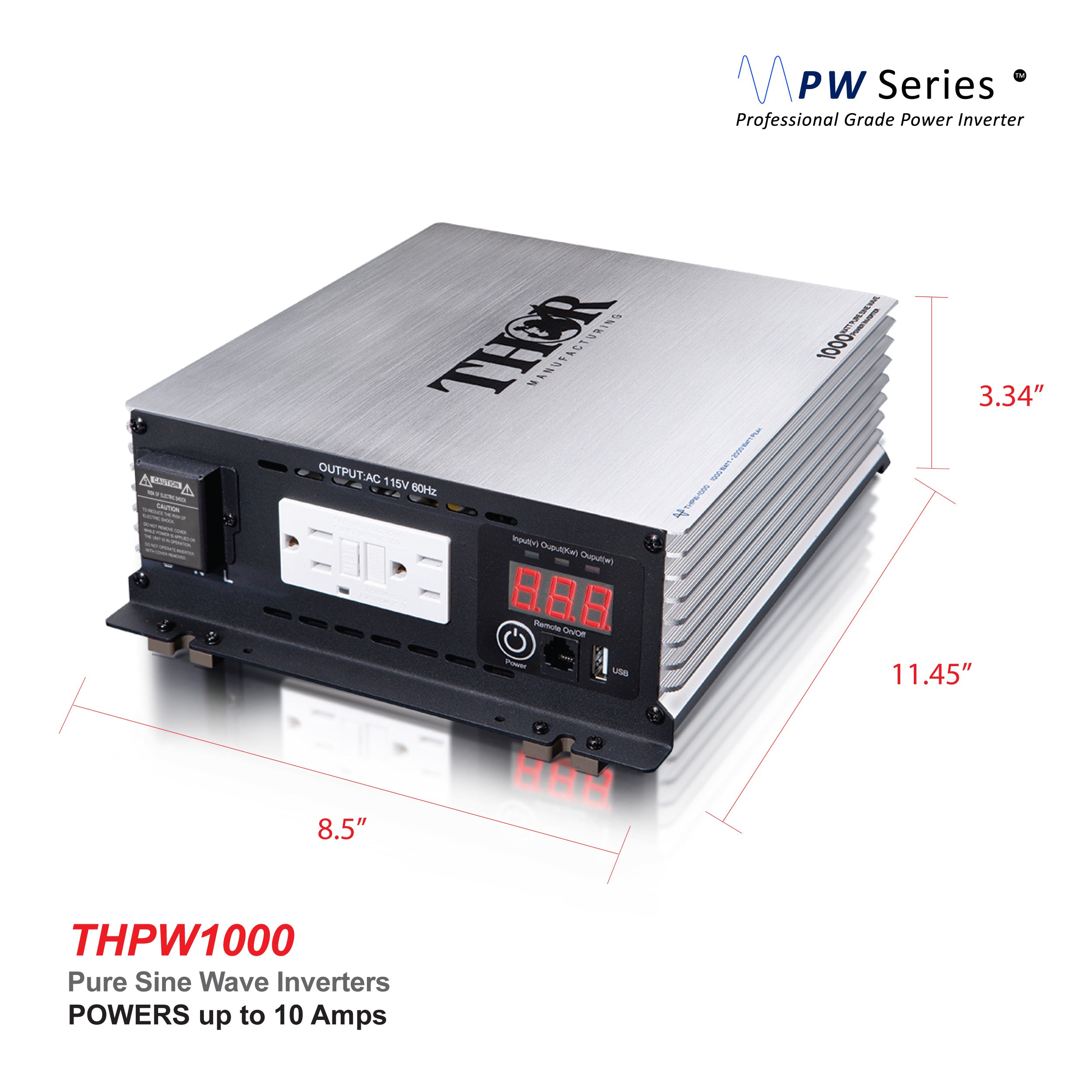

• Dimension: 11.5L x 8.5W x 3.34″H
• Net weight: 10 lbs
