Description

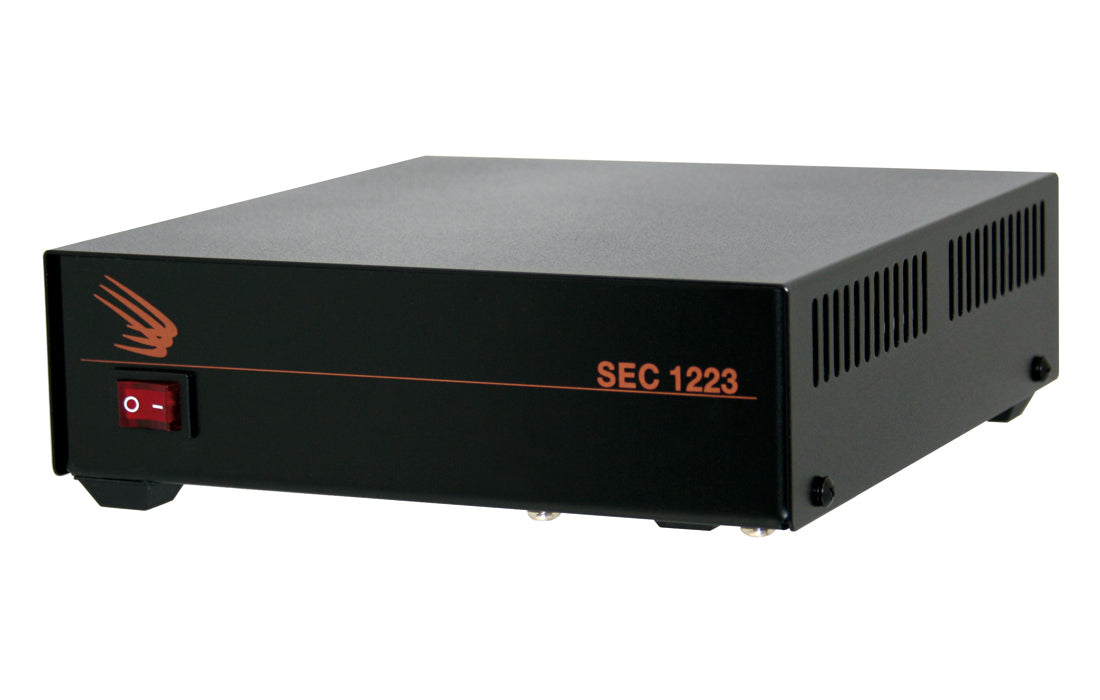

The SEC-1223 high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz possible models also available). This advanced switch-mode DC power supply is designed specifically for use with land mobile radio. The SEC-1223 produces clean reliable power and is highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
Applications
Design Features
Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications
Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC
UL listed to both USA & Canadian safety standards.
- Input: 100-130 or 200-260 V AC
- Output: 13.8 VDC
- Output Current: 23 amps continuous, 25 amps max surge
- Over-current, short circuit and over-voltage protection, Advanced switch-mode technology. Fuse 6.3 amps
