Description

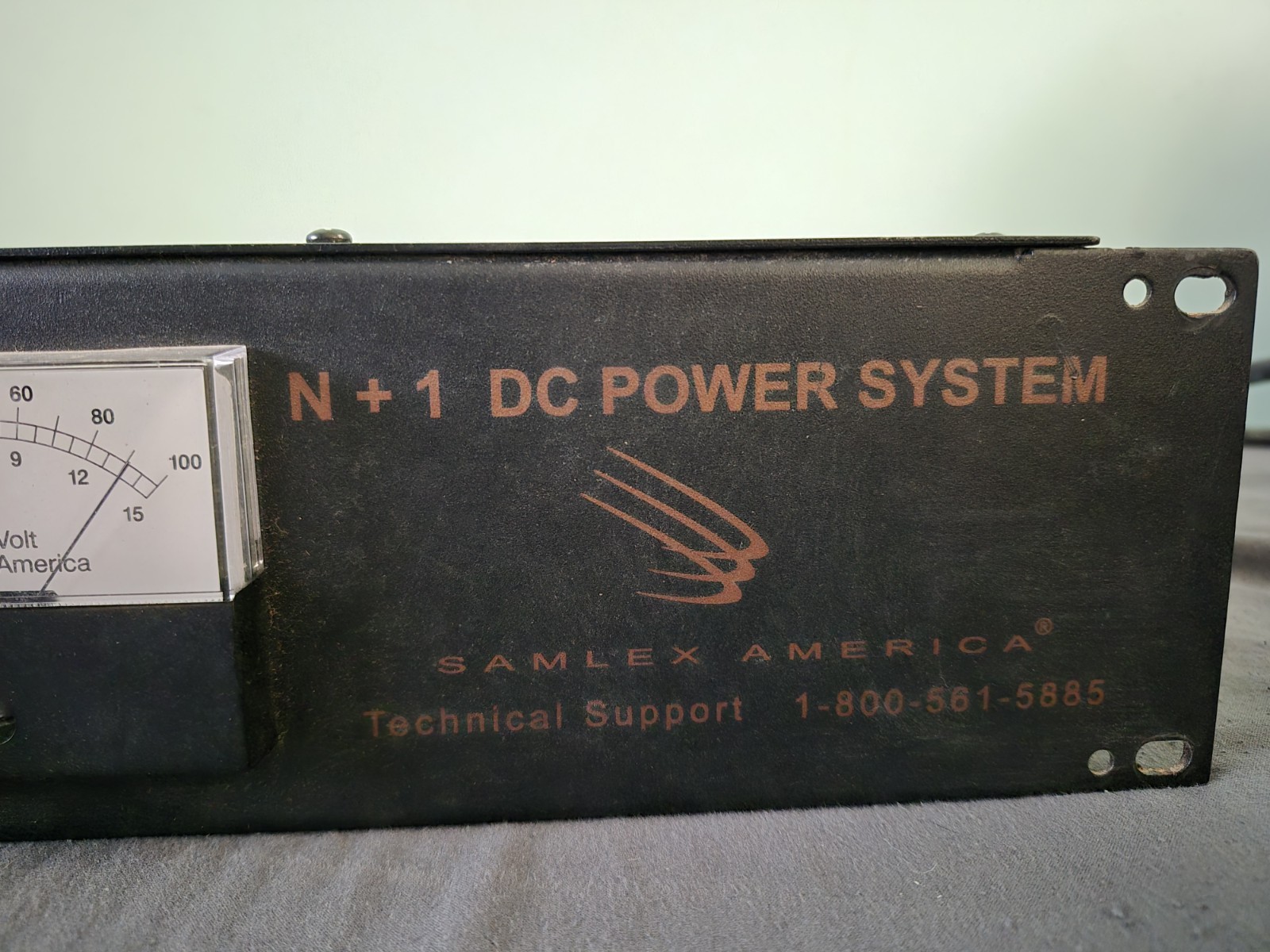

The Samlex America SEC100BRM modular 19” rack mount AC/DC power supply can provide up-to 100 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50/60 Hz AC input). An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.
Attention California residents: Proposition 65 Warning: Some of the products sold through this website contain/may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
Specifications
Model#
Input Voltage
Output Voltage
Dimensions
Output
Fuse Rating
Weight
SEC-100BRM
105-125 VAC 50/60 HZ
13.8 VDC
3.5 x 19 x 14
100 Amps
n/a
30.5 lbs
Applications
Any critical power supply application
Telecommunications systems
Mobile sound/audio displays
GPS receivers
Security systems
CCTV systems
Design Features
Provides N + 1 redundancy on SEC60BRM, 80BRM, 100BRM
Voltage/Amperes meter
Module status LEDs, fault indicator LEDs and fault alarm are standard features on all models
Highly regulated output voltage
Short circuit protection and overload current
