Description

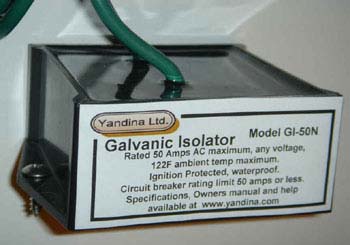

The Yandina Galvanic Isolator blocks electrolysis currents from flowing in the ground conductor of your shore power hookup. It provides approximately 1.2 volts of isolation to isolate electrolytic voltages from the dock, but yet pass safety currents to ground in the event of a short circuit, or power leakage on your boat.
WARNING: Cancer and reproductive harm. Visit www.p65warnings.ca.gov
FEATURES:
-
Fail Safe 50 amps AC continuous rating (30 amps DC)
-
Use on any shore power connection up to 50 amps
-
Only one required for dual 30 amp connections
-
Works on 115 or 230 volt supply, one or two phase
-
Meets ABYC standards (when fitted with a remote monitor, not included)
-
Waterproof rated IP68 Protected from long term immersion
-
No heat produced under normal use
-
Minimal temperature rise on maximum load
-
Two 18″ 10 gauge Marine Grade leads
-
Non metallic housing with mounting tabs
-
Ignition protected for use in explosive atmospheres
-
Suitable for operation up to 122 F or 50 C
-
Optional capacitor available for AC leakage
-
Mounting and connection hardware included
-
Compact size 4″ x 3″ x 1.5″
