Description

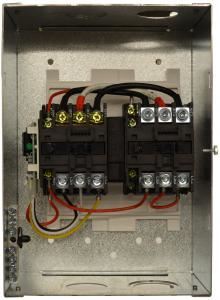

The Go Power! 50 amp transfer switch provides automatic power switching between two or three separate 120/240 volt AC input sources. It automatically connects shore power (when available) to your breaker panel. When unplugged from power, it then connects your inverter output to power your circuits. The TS-50 is a double pole switch for 50 amp services with two separate 120 VAC legs.

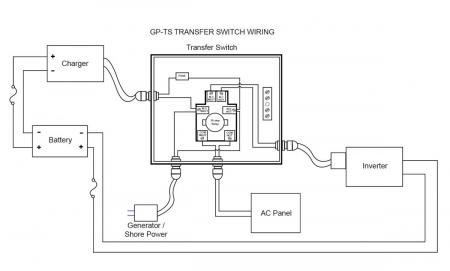

1. Shore Power
2. Go Power Transfer Switch
3. to AC panel
4. Go Power Inverter
5. Go Power Battery Charger or stock converter charger
6. Converter
